상하이 다에섬 과학 기기 및 장비 회사
| Place of Origin: | Shanghai, China |
|---|---|
| 브랜드 이름: | Daesum ( liquid filler) |
| Minimum Order Quantity: | 1 |
| application: | Chemical | packaging type: | Barrel, Drums |
|---|---|---|---|
| packaging material: | plastic, Metal | automatic grade: | Semi-automatic |
| driven type: | Electric | Voltage: | 380V |
| warranty: | 1 Year | key selling points: | Cost peformance |
| filling material: | Oil, Juice, Other, Liquid | filling accuracy: | ±0.2%FS |
| machinery test report: | Provided | video outgoing-inspection: | Provided |
| core components: | motor, PLC, Gear, Bearing, Gearbox, Engine, Other | filling nozzle: | 1, 2, 8 |
| After-sales Service Provided: | Video technical support, Field installation, commissioning and training, Online support | Weight (KG): | 3000 |
| Filling Volume: | 200L, 1000L | Usage: | Semi-automatic filling |
| Container type: | 200L drum or 1000L IBC | Capacity for filling drum: | 35-40 drums/hour |
| Accuracy: | ±0.2% | Filling mode: | above liquid surface or immersing filling |
| Capacity for filling IBC: | 6-8 IBCs/hour | Material of structure: | SS304 and cs painted |
| Material of process contact part: | SS304 SS316 PTFE | Application: | Chemical liquid |
| Power: | 380V 50Hz or customized | ||
| 강조하다: | semi-auto drum filling machine,200L drum filling machine for oil,electric pallet filling machine |
||

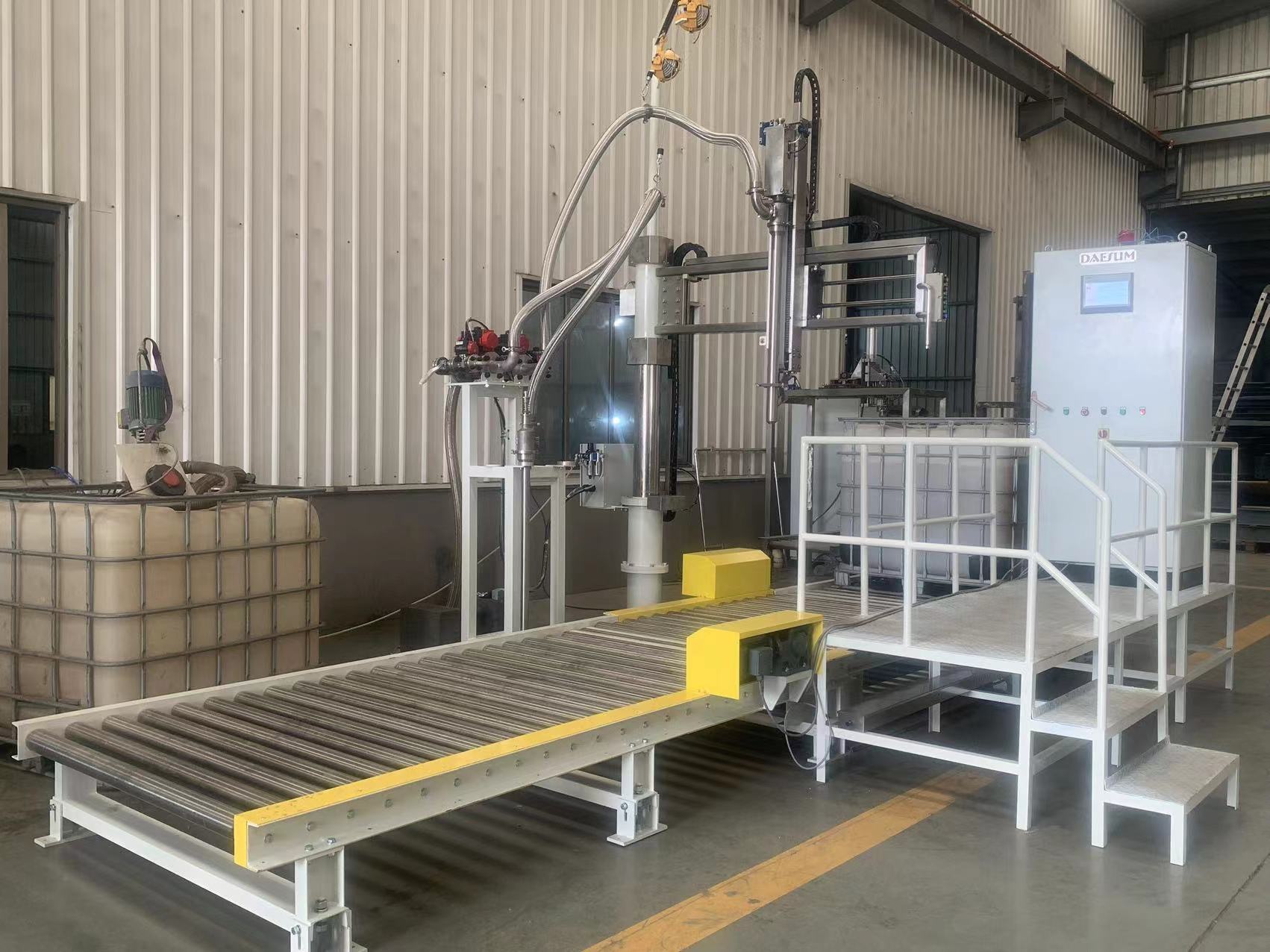

*Product Application:
Applications include free flowing to viscous products, including chunky products. Fill volumes
from 50L to 1000L at high flow rates with accuracies up to ±0.2% dependent upon drum size
and type of product.
*Technical Specification:
| 1). Product | Free flow to high viscosity |
| 2). Output Speed | 30-50 drums/Hr dependent upon drum size and type of product |
| 3). Container Shape | Round IBC Tank, pail, drum or others |
| 4). Drum Material | Plastic&Metal container |
| 5). Drum size | Standard 200-220L |
| 6). Voltage supply | 415/220, 1/3Phase, 50/60Hz |
| 7). Filling accuracy | Class X (0.5) (0.2%) |
| 8). Filling mode | Above or under liquid level with fast&dribble fill |
Customized according to the customer request is also allowed.
*Filling System Feature:
1). One (1) set of SS304 Nozzle equipped;
2). No spilling of the product onto clean drums and roller conveyor with hood cover under the
nozzle.
3). Manual/Net/Gross Filling. Auto two stages fast fill&dribble fill;
4). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight
pipe;
5). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to
its original up position;
6). METTLER TOLEDO Brand Weight Scaler with digital display;
7). Heavy duty weighting platform mounted single load cell, overload protected;
8). All parts in contact with liquid must be in SS304&PTFE seals;
9). IP55 class control cabinet to house weighing indicator and pneumatic box to house all
pneumatic components.
*Control System Feature:
1). Germany Siemens/Japan Omron PLC Control System;
2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill
*Optional Item
1). Available to suit Hazardous Environments with Ex-proof system
2). Nozzle diving system.
3). Drum crimping tool
Call/email now for a quick response to your application questions.
