상하이 다에섬 과학 기기 및 장비 회사
| Place of Origin: | Shanghai, China |
|---|---|
| 브랜드 이름: | Daesum (liquid filling machine) |
| Minimum Order Quantity: | 1 |
| application: | Chemical, liquid | packaging type: | Barrel, Drums |
|---|---|---|---|
| packaging material: | plastic, Metal | automatic grade: | Automatic |
| driven type: | Electric | Voltage: | 220V, 415V, 380V, 400V |
| dimension(l*w*h): | adjusted according to actual situation | warranty: | 1 Year |
| key selling points: | Easy to Operate | filling material: | Oil, Chemical liquid |
| filling accuracy: | ±0.2%FS | machinery test report: | Provided |
| video outgoing-inspection: | Provided | core components: | motor, PLC, Gear, Gearbox, Other, Filling nozzle |
| filling nozzle: | 2 | After-sales Service Provided: | Video technical support, Field installation, commissioning and training, Online support, Engineers available to service machinery overseas |
| Weight (KG): | 12000 | Application: | Chemical/Medical |
| Accuracy: | ±0.2% | Power supply: | 220V 380V 415V 440V 3P |
| Air supply: | 0.4-0.6MPa | Lance type: | Above surface/immersing filing |
| name: | Automatic filling machine for 60-220L | liquid filling machine: | liquid filling machine1 |
| type 2: | en-closed with 2 nozzles | Explosion proof: | Applicable |
| 강조하다: | Fully automatic drum filling machine,Explosion proof ATEX drum filler,Chemical liquid filling machine |
||
*Product Application:
Applications include free flowing to viscous products. Fill volumes from 60L to 200L at high flow rates with accuracies up to ±0.2% dependent upon drum size and type of product.
*Technical Specification:
| 1). Product | Free flow to high viscosity |
| 2). Output Speed | 60-80 drums/Hr dependent upon drum size and type of product |
| 3). Container Shape | Round drums |
| 4). Drum Material | Plastic&Metal container |
| 5). Drum size | Standard 200L |
| 6). Voltage supply | 380V, 400V, 415V, 440V, 50Hz/60Hz, 3P |
| 7). Filling accuracy | Class X (0.5) (±0.2%) |
| 8). Filling mode | Above or under liquid level with fast&dribble fill |
Customized according to the customer request is also allowed.
*Filling System Feature:

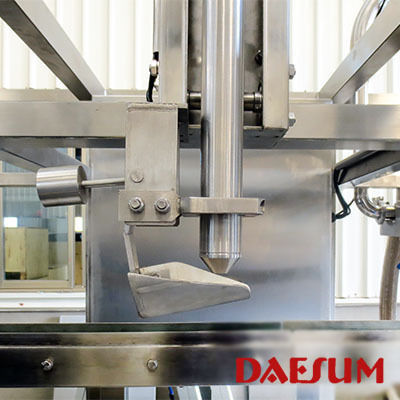

1). One (1) set of SS304 Nozzle equipped;

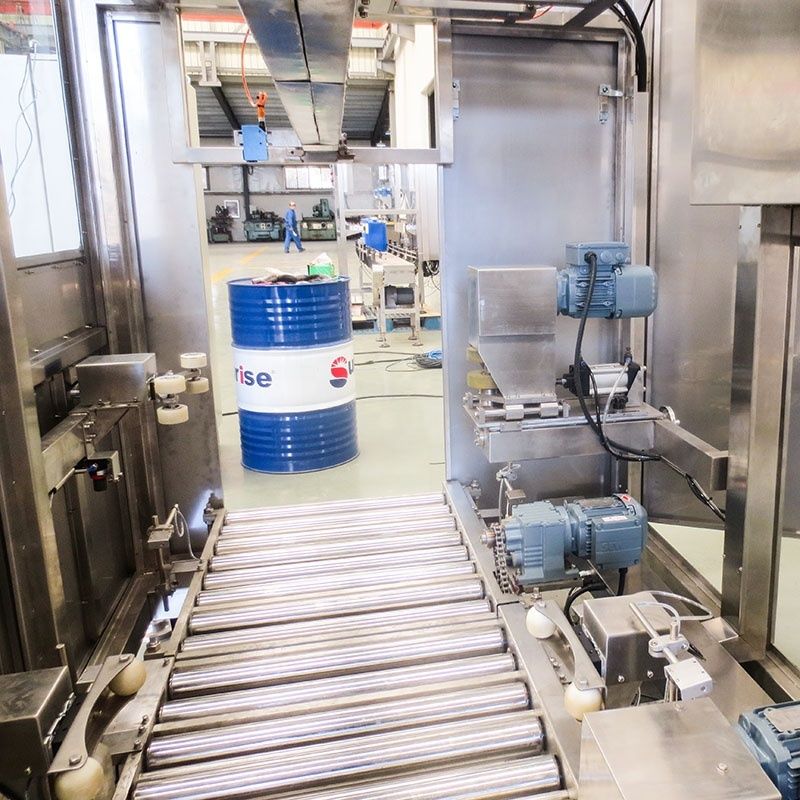

2). No spilling of the product onto clean drums and roller conveyor with hood cover under the nozzle.
3). Manual/Net/Gross Filling. Auto two stages fast fill&dribble fill;
4). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight pipe;
5). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to its original up position;
6). METTLER TOLEDO/TRANSCELLS Brand Weighing loadcells;
7). Heavy duty weighting platform mounted single load cell, overload protected;
8). All parts in contact with liquid must be in SS304&PTFE seals;
9). IP55 class control cabinet to house weighing indicator and pneumatic box to house all
pneumatic components.
*Control System Feature:
1). Germany Siemens PLC Control System;
2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill
*Optional Item
1). Available to suit Hazardous Environments with Ex-proof system
2). Nozzle diving system.
3). Drum crimping tool
