Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed

Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed
기본 정보
원래 장소: 상하이, 중국
브랜드 이름: Daesum
최소 주문 수량: 1
최고의 가격 지금 연락
어플리케이션: 음료, 화학, 자동 충전, 캡핑 및 팔레타이징 포장 유형: 병, 배럴
포장재: 플라스틱, 나무 자동등급: 오토매틱
피구동형: 전기 같은 전압: 실제 상황에 따라 조정됩니다
차원 (L*W*H): 실제 상황에 따라 조정됩니다 보증: 1년
주요 판매 포인트: 작동하기 쉽습니다 충전재: 맥주, 우유, 물, 기름, 주스, 기타, 액체
충전 정확도: ± 0.2%fs 기계 시험 보고서: 제공
영상출고검사: 제공 핵심 구성요소: 모터, PLC, 기어, 베어링, 기어박스, 엔진, 기타, 충진노즐
채우기 노즐: 6, 8, 10 판매 후 서비스 제공: 작동하는 비디오 기술 지원, 온라인 지원, 현장 설치와 훈련하면서, 해외로 기계류를 서비스할 수 있는 엔지니어들
체중(kg): 2500 충전 볼륨: 500mL, 1L, 300mL
어플리케이션: 의료/화학 물질 충전 노즐: 6-16 노즐
자동등급: 완전히 자동차 충전 속도: 1000-2000BPH
정확성: ± 0.2% fs 주변 온도: -10 ℃ ~ 40 ℃
보호 수준: IP55보다 낫습니다 재료: SS304/SS316/PTFE
제품 충전: 젤/오일/액체
강조하다:

fully automatic small bottle filling machine

,

250-500ml bottle filling machine with nozzles

,

small bottle filler 1000-2000 BPH speed

Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 0
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 2
250-500mL Fully Automatic Small Bottle Chemical Liquid Filling Machine
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 4

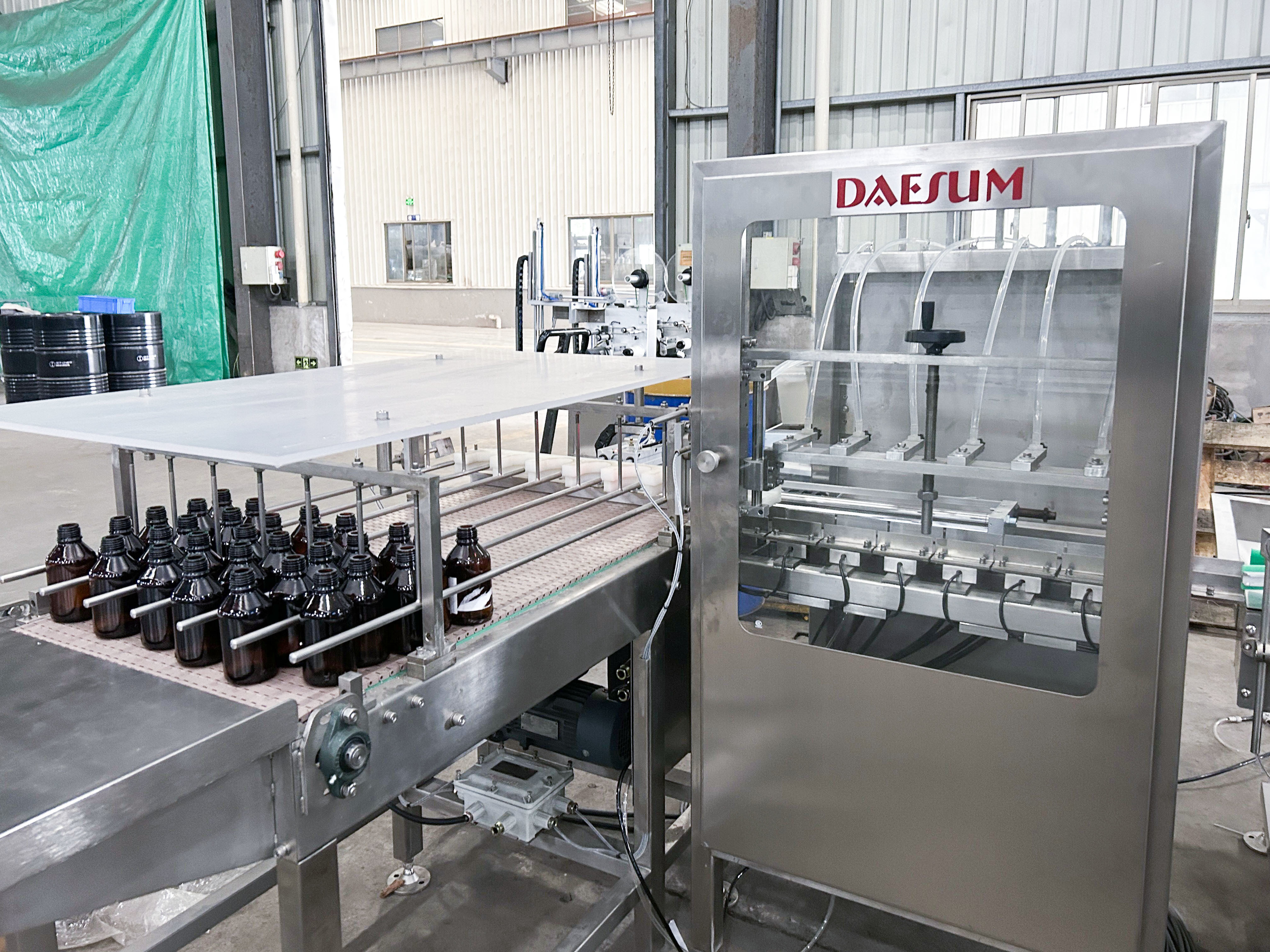

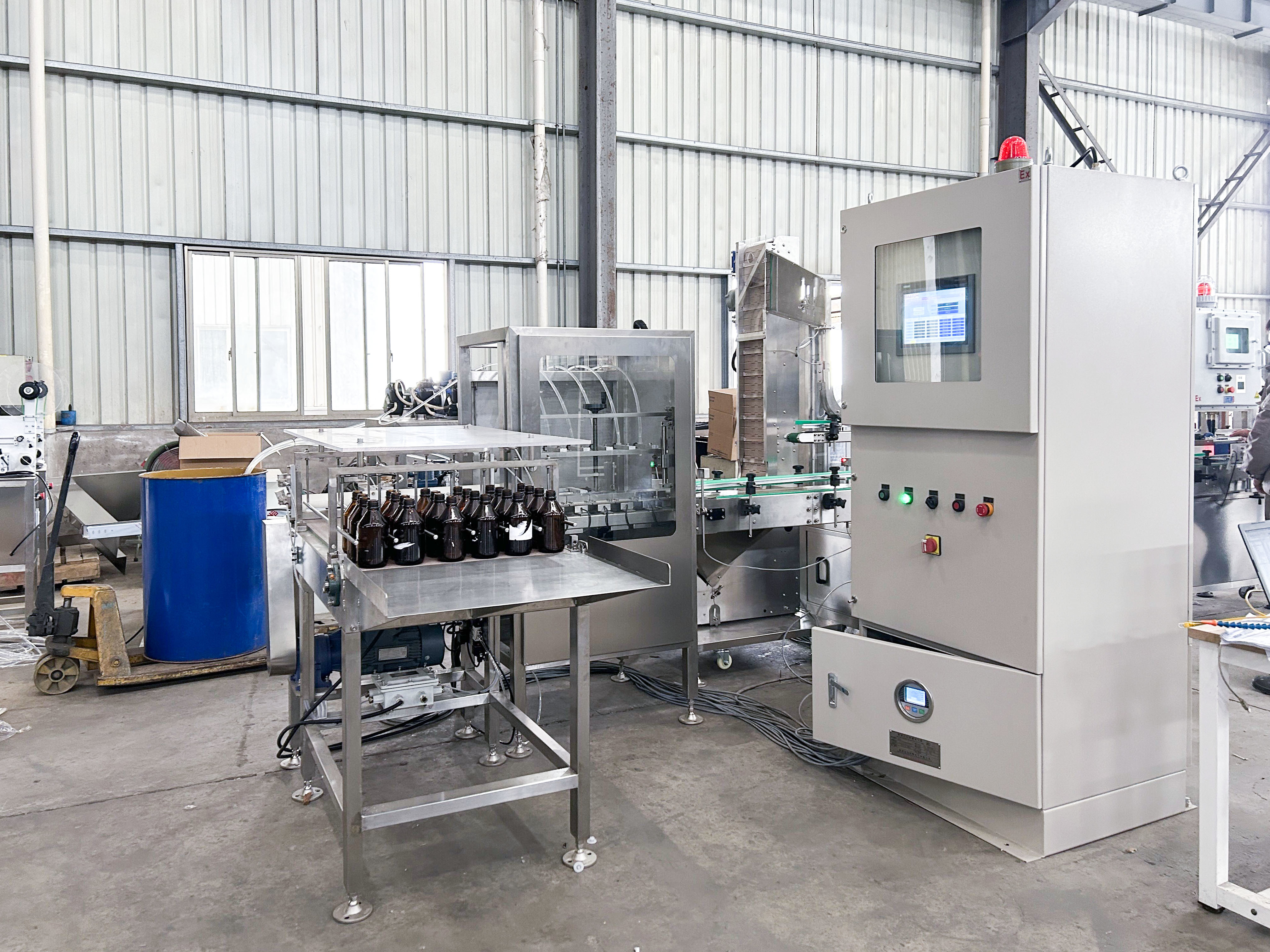

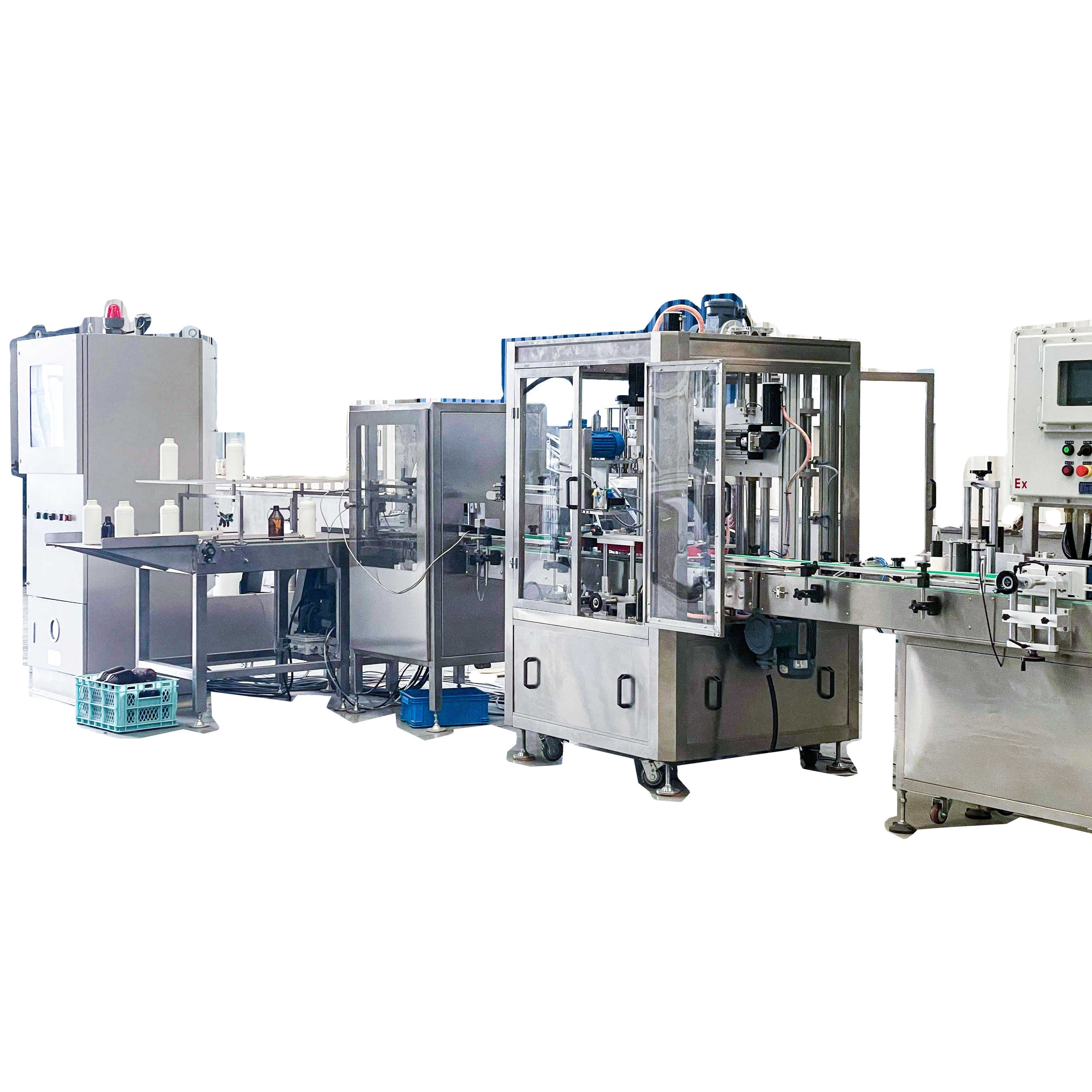

Equipment Description
The equipment realizes automatic small bottle infeed, quantitative filling, capping, labeling and bottle collection. There is 6-12 weighing scales, and can fill 3 different sizes of bottles. The machine is explosive proof, and production speed could reach 1000-2000 bph. The machine is equipped with high speed tracing capping machine, and high speed bottle rotary labeling machine, which could ensure production capacity.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 6
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 8
The equipment using peristaltic pump to realize material adding, so that the machine could fill various types of liquid. The machine is easy to operate, and easy to maintenance.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 10

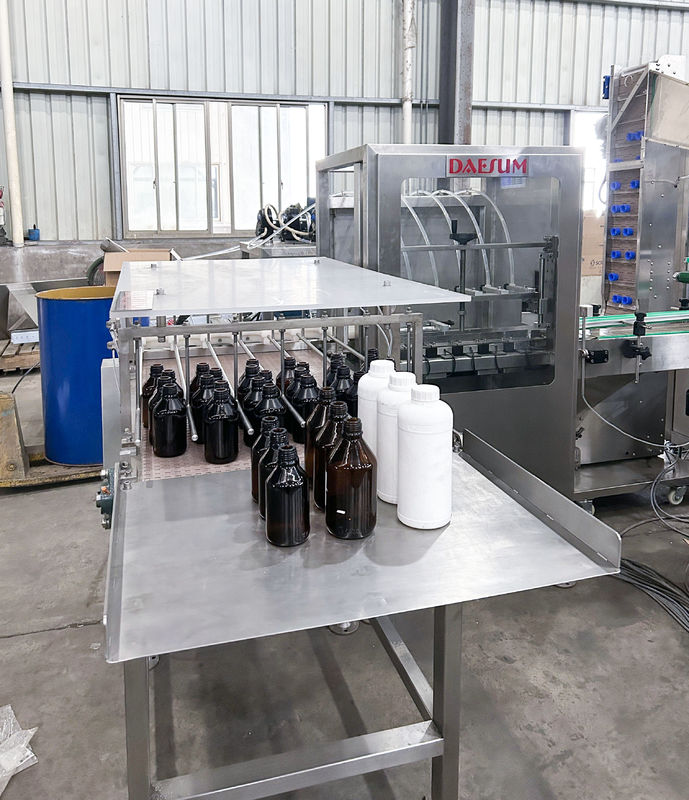

Mesh conveyor

1.Can be equipped with mesh conveyor for bottles infeed.
2.Driven by gear motor
3.Infeed 6 at a time
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 12

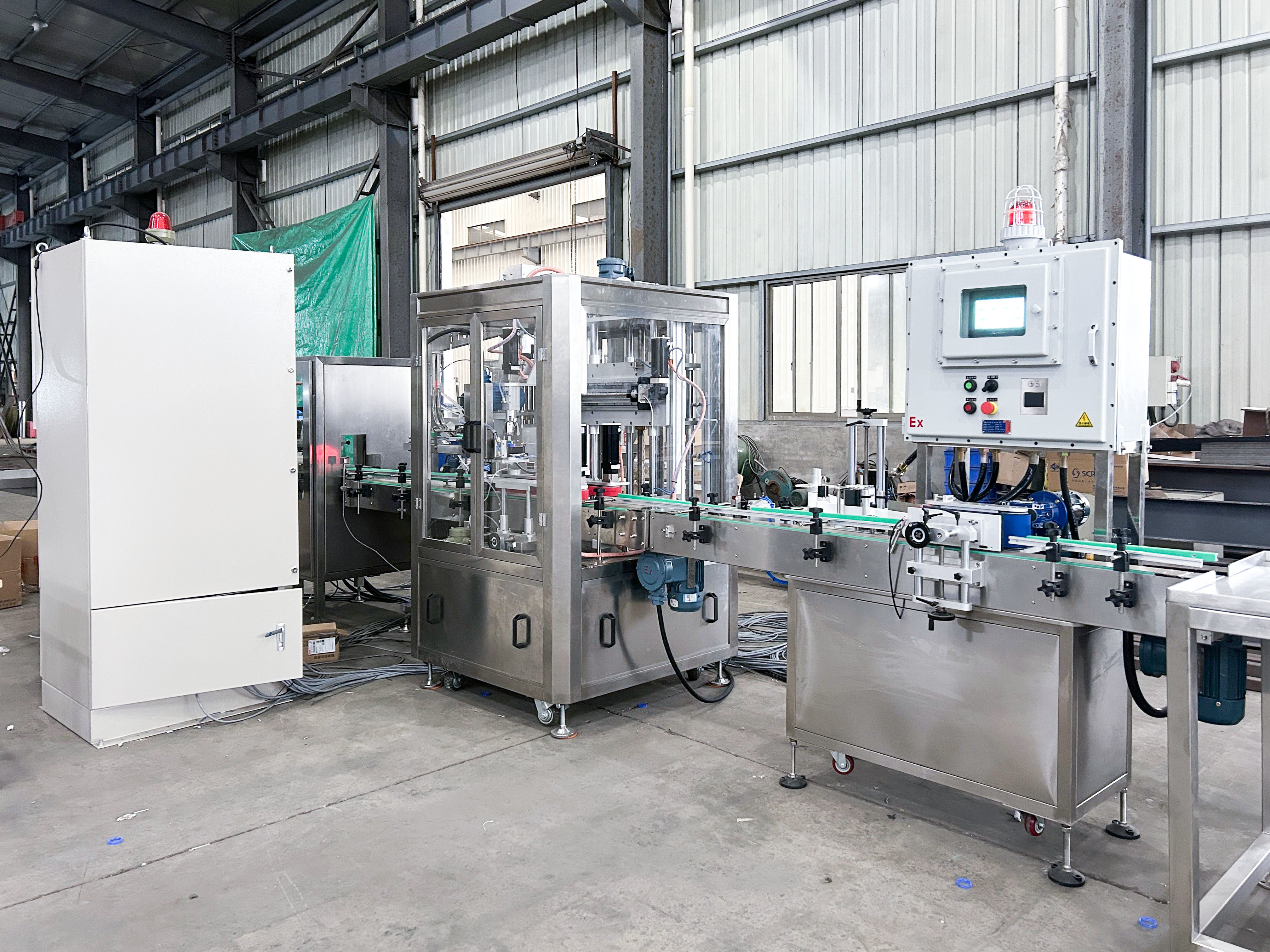

Tracing capping and labeling

1.High speed capping, up to 1600bph/gripper
2.High speed labeling, up to 2500bph
Specification
Automatic Grade
Fully Automatic
Power
380/440V 50/60Hz
Air pressure
0.4-.0.6Mpa
Filling Accuracy
0.2%FS
Maximum weight
2kg
Interval
1g
Material
SS304/SS316/PTFE
Container
Bottle/Barrel/
Filling range
250-500ml
Filling products
Oil/Liquid
Filling speed
1000-2000bph
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 14
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 16

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 18
3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 20
4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 22
1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 24
2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 26
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 28
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 30
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 32
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 34
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 36
ISO 9001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 38
ISO 14001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 40
ISO 45001 Certificate
Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed 42
F&Q
1. When was Daesum first established? Where is our factory located at?
- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.
2. What kind of product do you provide?
- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.
3. Can you do explosion proof filling machines?
- Yes
4. What kind of service can you provide?
- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.
5. Where can you export?
- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.
6. If we need maintenance or meet problem, how could you help?
- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.
7. What kind of package would you use?
- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.
- For spareparts, we usually send by air express with boxes.
