상하이 다에섬 과학 기기 및 장비 회사
| 원래 장소: | 상하이, 중국 |
|---|---|
| 브랜드 이름: | DAESUM |
| 인증: | ISO |
| 최소 주문 수량: | 1 |
| 가격: | $35,000-50,000 |
| 기계 용량: | 200BPH | 충전 정확도: | ± 0.2% |
|---|---|---|---|
| 노즐 양: | 4 | 무게: | 2000킬로그램 |
| 출력 속도: | 10-12 캔/분 | 컨테이너 형상: | 케케묵은 주석이 할 수 있습니다 |
| 컨테이너 재료: | 금속용기 | 컨테이너 크기: | 표준 18L |
| 전압 공급: | 415/220, 1/3 상, 50/60Hz | 충전 모드: | 빠른 및 드리블 채우기를 사용하여 액체 수준 위 또는 아래 |
| 핵심 구성 요소: | 모터, PLC, 지탱한 기어, 기어박스, 엔진 | 제어 시스템: | 독일 지멘스/일본 오론 PLC 제어 시스템 |
| 충전재: | 맥주, 우유, 물, 기름, 주스 | 재료 연락처: | SS304&PTFE 씰 |
| 인클로저 재료: | 스테인레스 스틸 304 | ||
| 강조하다: | automatic tin can filling machine,tin can filling line equipment,industrial can filling system |
||

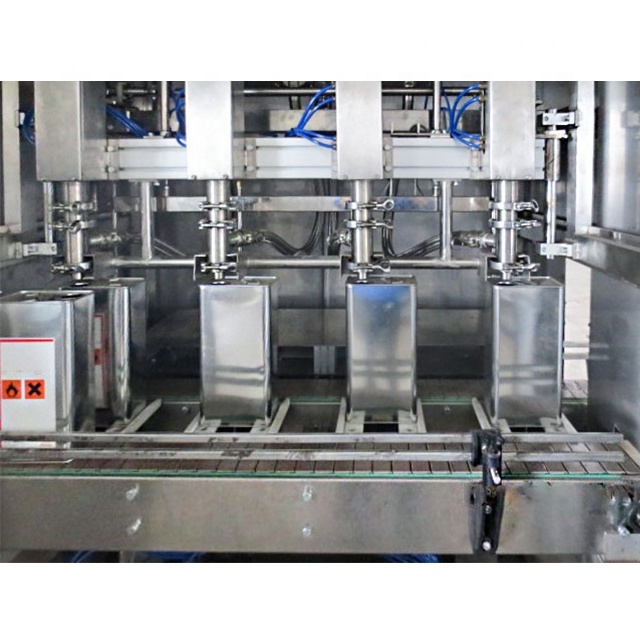

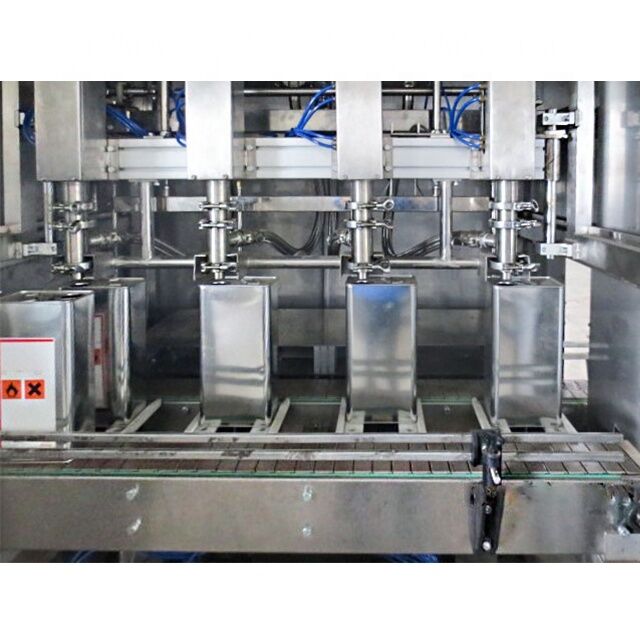

Tin Can Filling Machine with 4 Nozzles GZ-18ST-3(Square Metallic Tin)
*Product Application:
Applications include free flowing to viscous products, including chunky products. Fill
volumes from 5L to 25L at high flow rates with accuracies up to ±0.2% dependent upon tin
can size and type of product.
*Technical Specification:
| 1). Product | Free flow to high viscosity |
| 2). Output Speed | 10-12 Cans/Min dependent upon can size and type of product |
| 3). Container Shape | Square Tin Can |
| 4). Container Material | Metal container |
| 5). Container size | Standard 18L (More on requests) |
| 6). Voltage supply | 415/220, 1/3Phase, 50/60Hz |
| 7). Filling accuracy | Class X (0.5) (0.2%) |
| 8). Filling mode | Above or under liquid level with fast&dribble fill |
*Filling System includes:
1). Three (3) set of SS304 Nozzle equipped;
2). No spilling of the product onto clean cans and roller conveyor with hood cover under the
nozzle.
3). Quick-release, fast inter-changeable lance for easy and fast maintenance;SS316 straight
pipe;
4). Top/Low Fill, auto lowering of lance assembly together with the hood cover and retract to
its original up position;
5). METTLER TOLEDO Brand Weight Scaler with digital display;
6). Heavy duty weighting platform mounted single load cell, overload protected;
7). All parts in contact with liquid must be in SS304&PTFE seals;
8). spring assists to close filling nozzle in the even of power failure;
9). Stainless steel 304 enclosure with front viewing Perspex mounted hinge cover;
10). IP55 class control cabinet to house weighing indicator and pneumatic box to house all
pneumatic components.
*Control system includes:
1). Germany Siemens/Japan Omron PLC Control System;
2). Manual/Net/Gross Filling. Auto two stages fast/dribble fill
* Optional Item&Accessary Equipment
1). Digital Touch Screen Panel with System Integration;
2). PLC to DCS synchronization and simulation;
3). Storage tank with level controller;
4). Available to suit Hazardous Environments with Ex-proof system;
5). Tin De-palletizer and Palletizer
6). Auto Capping Machine (Both of Press-on and screw cap);
7). Check weight, labeler, robot arm palletizer,etc
8). Nozzle diving system for foamy product.
Customized according to the customer request is also allowed.
Call/email now for a quick response to your application questions.
